**Coming Soon** Ionic Wall Mount Cascade

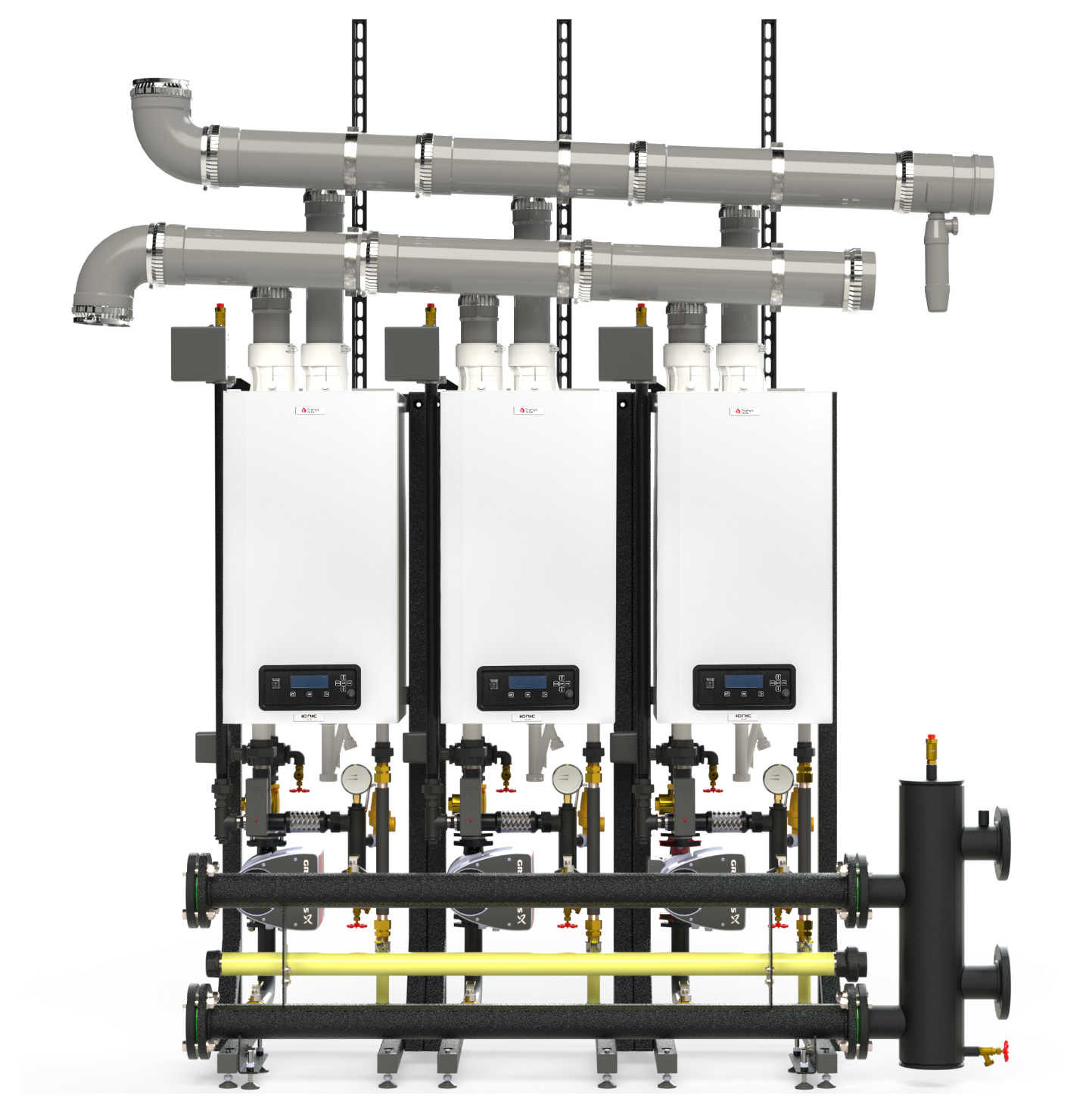

The Ionic Wall Mount Cascade Boiler is easy to install and provides long-lasting reliability. This trusted commercial boiler cascades up to six boilers on racking and the configuration allows for quick installation. Each Ionic Wall Mount Boiler comes loaded with features such as: a robust stainless steel heat exchanger, modulation up to 39:1, modbus connection as standard and easy-to-read error history. Sizes are available in 299, 399, 470 and 500 MBH.

  • Models Range From 299 To 500 MBH

  • Racking Designed For Small Footprints

  • Cascade Up To 6 Boilers On Racking

  • Configured Racking For Quick Install

  • Modulation Up To 39:1

  • Required Pump Kit Options Available

Model Comparison Model Comparison

Models *# of BoilersTotal Input MBH **Total Output MBHDepth (Rack System Only)Width (Rack System Only)Weight (lbs.) (Rack System Only)Width (Rack +LLH)Weight (lbs.) (Rack +LLH)Models LLH ***

Performance Specs (3" Header)

  • RS0600BL2D3
  • (2) 299
  • 598
  • 578
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS0800BL2D3
  • (2) 399
  • 798
  • 762
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS0900BL3D3
  • (3) 299
  • 897
  • 867
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS0940BL2D3
  • (2) 470
  • 940
  • 890
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS1000BL2D3
  • (2) 500
  • 1,000
  • 936
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS1200BL4D3
  • (4) 299
  • 1,196
  • 1,156
  • 27"
  • 86"
  • 650
  • 101"
  • 735
  • INEXC LLH 3"
  • RS1200BL3D3
  • (3) 399
  • 1,197
  • 1,143
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS1410BL3D3
  • (3) 470
  • 1,410
  • 1,335
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS1500BL5D3
  • (5) 299
  • 1,495
  • 1,445
  • 27"
  • 108"
  • 800
  • 123"
  • 885
  • INEXC LLH 3"
  • RS1500BL3D3
  • (3) 500
  • 1,500
  • 1,404
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS1600BL4D3
  • (4) 399
  • 1,596
  • 1,524
  • 27"
  • 86"
  • 650
  • 101"
  • 735
  • INEXC LLH 3"
  • RS1800BL6D3
  • (6) 299
  • 1,794
  • 1,734
  • 27"
  • 130"
  • 950
  • 145"
  • 1,035
  • INEXC LLH 3"

Performance Specs (4" Header)

  • RS1880BL4D4
  • (4) 470
  • 1,880
  • 1,780
  • 28"
  • 86"
  • 770
  • 101"
  • 885
  • INEXC LLH 4"
  • RS2000BL4D4
  • (4) 500
  • 2,000
  • 1,872
  • 28"
  • 86"
  • 770
  • 101"
  • 885
  • INEXC LLH 4"
  • RS2000BL5D4
  • (5) 399
  • 1,995
  • 1,905
  • 28"
  • 108"
  • 950
  • 123"
  • 1,065
  • INEXC LLH 4"
  • RS2350BL5D4
  • (5) 470
  • 2,350
  • 2,225
  • 28"
  • 108"
  • 950
  • 123"
  • 1,065
  • INEXC LLH 4"
  • RS2400BL6D4
  • (6) 399
  • 2,394
  • 2,286
  • 28"
  • 130"
  • 1,130
  • 145"
  • 1,245
  • INEXC LLH 4"
  • RS2500BL5D4
  • (5) 500
  • 2,500
  • 2,340
  • 28"
  • 108"
  • 950
  • 123"
  • 1,065
  • INEXC LLH 4"
  • RS2820BL6D4
  • (6) 470
  • 2,820
  • 2,670
  • 28"
  • 130"
  • 1,130
  • 145"
  • 1,245
  • INEXC LLH 4"
  • RS3000BL6D4
  • (6) 500
  • 3,000
  • 2,808
  • 28"
  • 130"
  • 1,130
  • 145"
  • 1,245
  • INEXC LLH 4"

* Height of Rack is 66" and increases to 75" with installed optional LWCO Standpipe accessory. Rack system is based on 30∆T with a maximum velocity of 5.21 ft/s

** Boiler Model / Input Minimum MBH - CB299:46 / CB399:72 / CB470:83 / CB500:83

*** Optional Matched Low Loss Header
