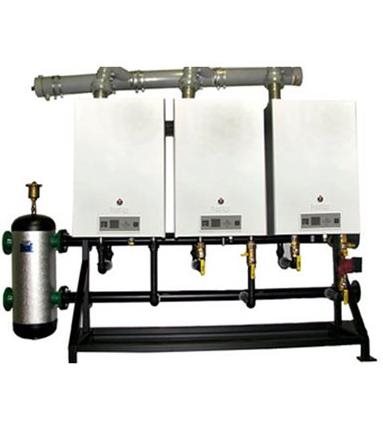

Prestige Cascade
Features and Benefits
-
Joins 2 to 5 Prestige Boilers for Maximum Inputs of 500 to 2000 MBH
-
Utilizes the Prestige heat exchanger for up to 96% AFUE
-
Multi-function rack mounts and joins boilers to provided manifolds
-
Turndown ratio of up to 18 to 1
-
Common vent available for 2 or 3 boilers
-
Hydraulic junction minimizes head loss, provides air separation, and eliminates system debris through the built-in drain
Product/Marketing Literature
Installation/User Manuals
Technical Supplements
Submittals
Engineering Submittal Prestige Cascade System CPS500 Primary Secondary
Engineering Submittal Prestige Cascade System CPS800 Primary Secondary
Engineering Submittal Prestige Cascade System CPS1000 Primary Secondary
Engineering Submittal Prestige Cascade System CPS1200 Primary Secondary
Engineering Submittal Prestige Cascade System CPS1600 Primary Secondary
Engineering Submittal Prestige Cascade System CPS2000 Primary Secondary
Repair Manuals
Prestige Solo 299-399 Blower Conversion Kit- Installation Instructions
Prestige Solo 80-110 ACVMax Boilers Natural to Propane Instructions
Prestige Solo 155/175/250 ACVMax Boilers Natural to Propane Instructions
Prestige Solo 299/399 CTRLMax Boilers Natural to Propane Instructions
Prestige Wall Mounting Bracket Kit Instructions
Prestige Timesaver Manifold
Prestige CTRLMax Control Module Replacement
Prestige Solo 399 Gas Valve Replacement Kit
Prestige Burner Mounting Plate Replacement
Prestige Burner Head Replacement
Prestige Insulation Replacement
Prestige Temperature Sensor Replacement
Prestige LWCO Replacement
Prestige Off Board Spark Ignition Kit Installation Instructions
Prestige Display Module Replacement
Prestige Venturi Replacement
Prestige Gas Valve Replacement
Prestige Blower Replacement
Product Comparison
Cascade Kit P/N | # of Manifolds | # of Solo 250 or 399 Boilers | Total Input MBH Note 1 | Total Output MBH Notes 1 & 2 | Total Net IBR Rating MBH Note 3 | Total EDR Water Ft2 Note 4 | Total Output Boiler Horsepower | Minimum Recommended System Iron Pipe Size Note 5 | Minimum Recommended Natural Gas Header Size Note 6 |
---|---|---|---|---|---|---|---|---|---|
C (PS or RR) 500 | 1 | 2 (250) | 65-490 | 446 | 388 | 2,588 | 13.3 | 2″ | 2″ |
C (PS or RR) 800 | 1 | 2 (399) | 112-798 | 758 | 659 | 4,396 | 22.6 | 3″ | 2″ |
C(PS or RR) 1000 | 2 | 4 (250) | 465-980 | 892 | 776 | 5,176 | 26.6 | 3″ | 2.5″ |
C(PS or RR) 1200 | 1 | 3 (399) | 112-1197 | 1,138 | 990 | 6,603 | 34.0 | 4″ | 2.5″ |
C(PS or RR) 1600 | 2 | 4 (399) | 112-1596 | 1,518 | 1,320 | 8,804 | 45.3 | 4″ | 3″ |
C(PS or RR) 2000 | 2 | 5 (399) | 112-1995 | 1,897 | 1,650 | 11,006 | 56.7 | 4″ | 3″ |
